Riverbend Greenroofs + Sponge
The Riverbend Greenroofs + Sponge is designed using the LiveRoof® module and adding a RoofSponge (BrenV) retention layer. This system will provide enhanced stormwater management.
To request a quote, please fill out our Quote Form. We offer a quick-turn service on quotations, but if you are under a tight deadline, please give us a call to let us know.
Standard Module + 1 Layer
Standard Module + 2 Layers
Deep Module + 1 Layer
Deep Module + 2 Layers
Lite Module + 1 Layer
Lite Module + 2 Layers

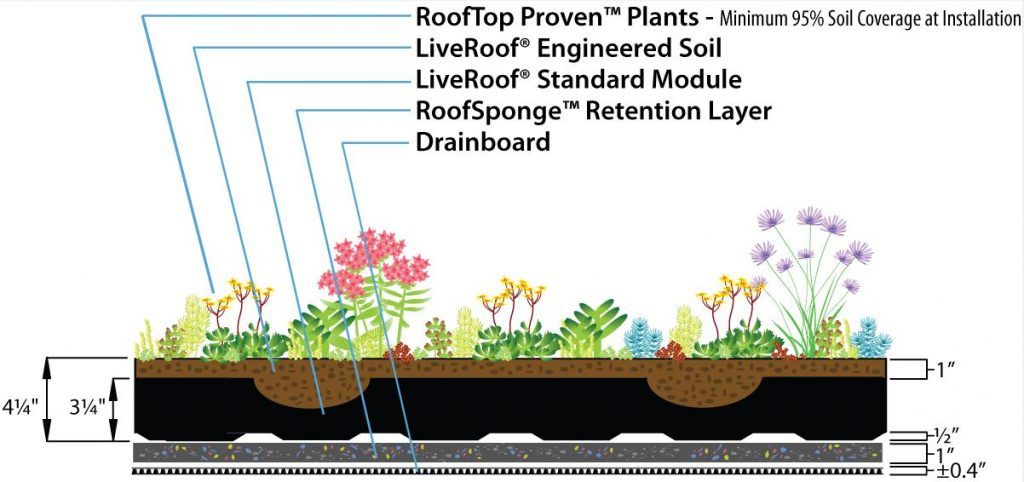

LiveRoof® Standard Module+ 1 RoofSponge™ (BrenV) Layer
- Soil: Appx. 4-1/4″ deep.
- Module Size: 1′ x 2′ x 3-1/4″
- Total System Saturated Weight: Appx. 30-32lbs/sf saturated and vegetated.
- Dry Weight: Appx. 20 lbs/sf
- Merits: Maximizes storm water management, integrates perfectly with new construction and often times existing buildings
- Plants: Succulent ground covers, water conserving accent plants, and hardy spring blooming bulbs

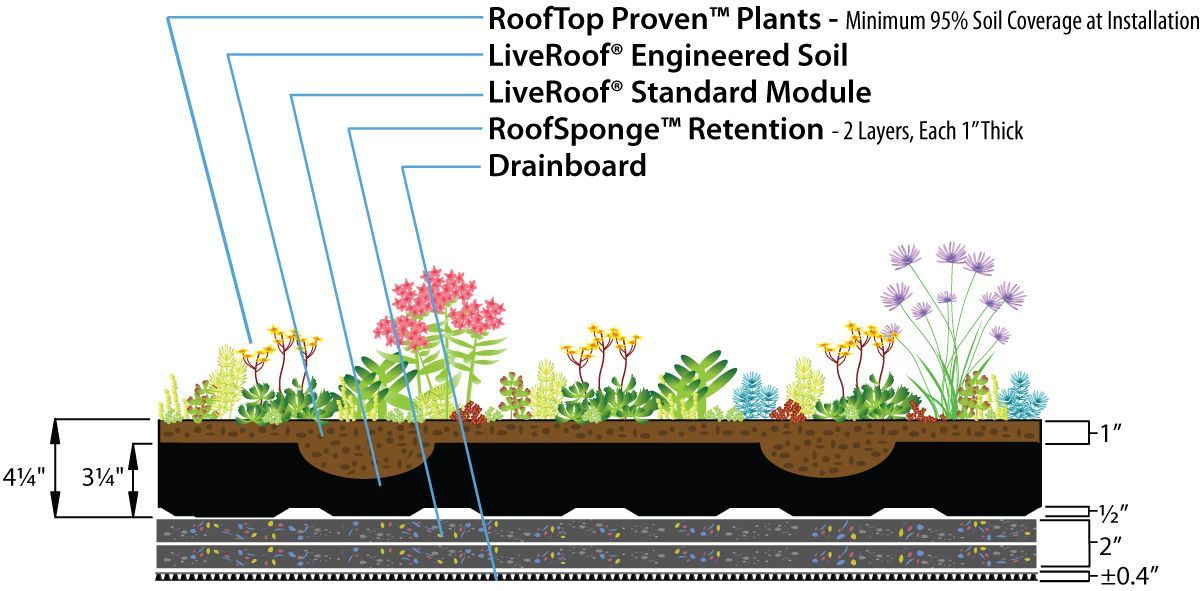

LiveRoof® Standard Module+ 2 RoofSponge™ (BrenV) Layers
- Soil: Appx. 4-1/4″ deep.
- Module Size: 1′ x 2′ x 3-1/4″
- Total System Saturated Weight: Appx. 33-35 lbs/sf saturated and vegetated.
- Total System Dry Weight: Appx. 20 lbs/sf
- Merits: Maximizes storm water management, integrates perfectly with new construction and often times existing buildings
- Plants: Succulent ground covers, water conserving accent plants, and hardy spring blooming bulbs

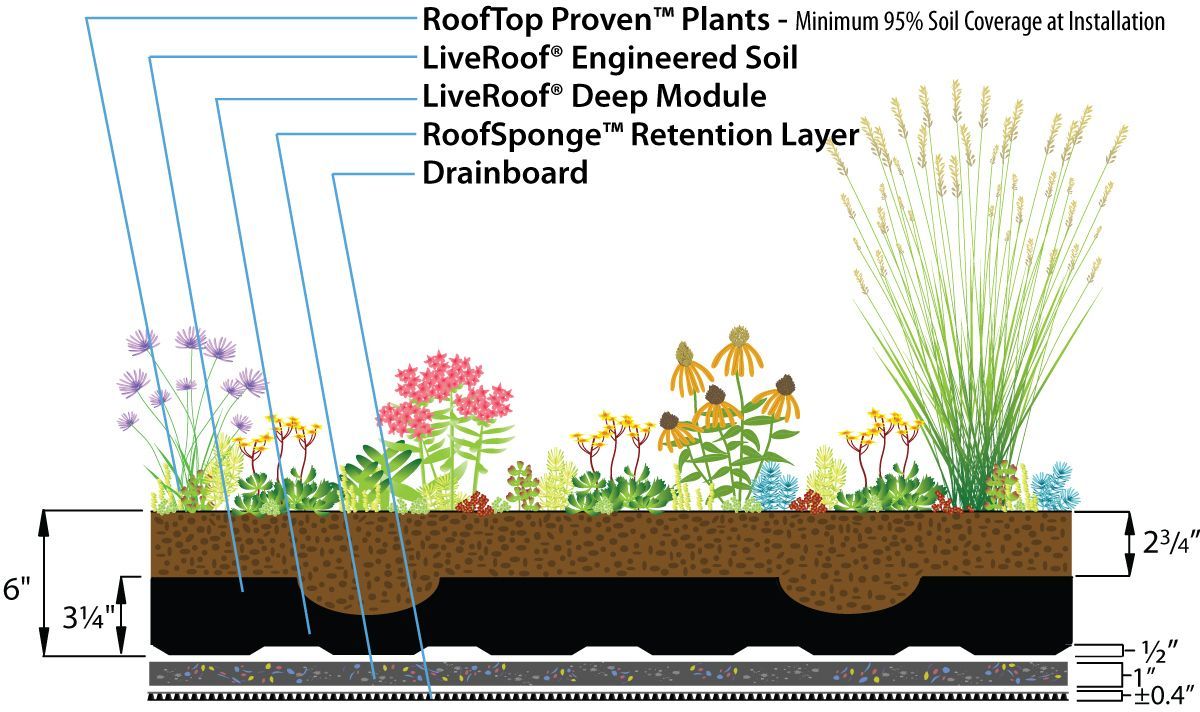

LiveRoof® Deep Module + 1 RoofSponge™ (BrenV) Layer
- Soil: Appx. 6” deep
- Module Size: 1′ x 2′ x 3-1/4″
- Total System Saturated Weight: Appx. 48-53 lbs/sf saturated and vegetated, when filled with LiveRoof® Engineered Soil
- Total System Dry Weight: Appx. 30 lbs/sf
- Merits: Ideal for retrofit projects where load limitations exist
- Plants: Succulent ground covers and water conserving accent plants

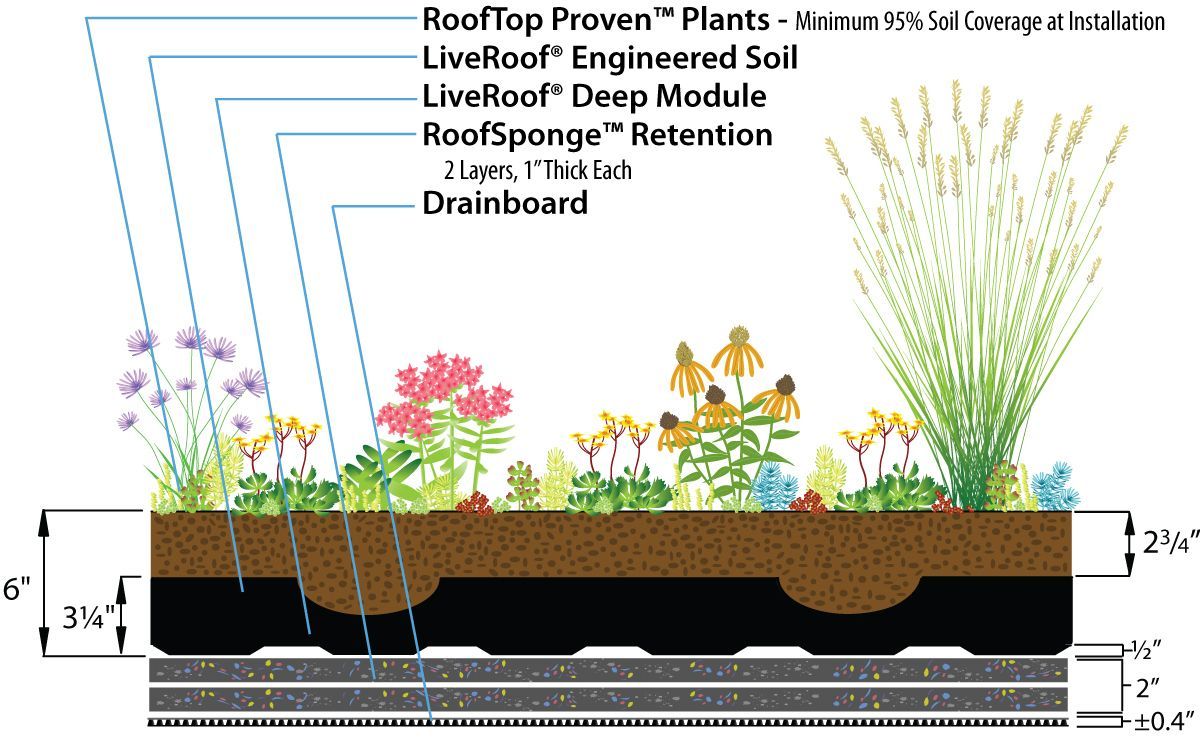

LiveRoof® Deep Module + 2 RoofSponge™ (BrenV) Layers
- Soil: Appx. 6” deep
- Module Size: 1′ x 2′ x 3-1/4″
- Total System Saturated Weight: Appx. 51-56 lbs/sf saturated and vegetated, when filled with LiveRoof® Engineered Soil
- Total System Dry Weight: Appx. 30 lbs/sf
- Merits: Ideal for retrofit projects where load limitations exist
- Plants: Succulent ground covers and water conserving accent plants

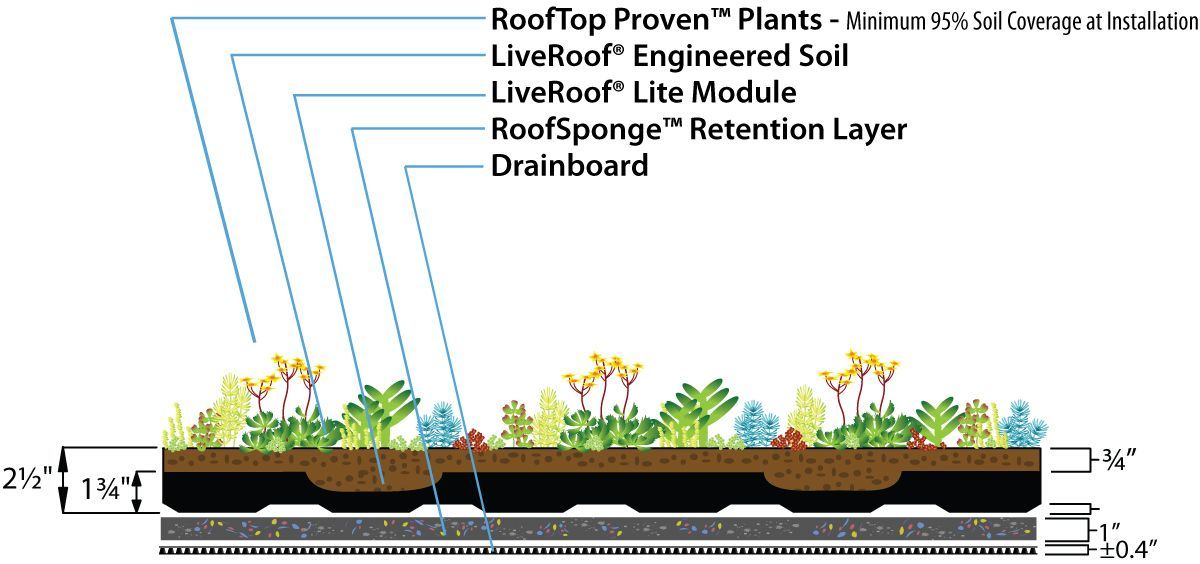

LiveRoof® Lite Module+1 RoofSponge™ (BrenV) Layer
- Soil: Appx. 2 1/2” deep
- Module Size: 1’ x 2’ x 1 3/4”
- Total System Saturated Weight: Appx. 18-20 lbs/sf saturated and vegetated, when filled with LiveRoof® Engineered Soil
- Total System Dry Weight: Appx. 12 lbs/sf
- Merits: Ideal for retrofit projects where load limitations exist
- Plants: Succulent ground covers and water conserving accent plants
- Note: Not recommended for hot climates

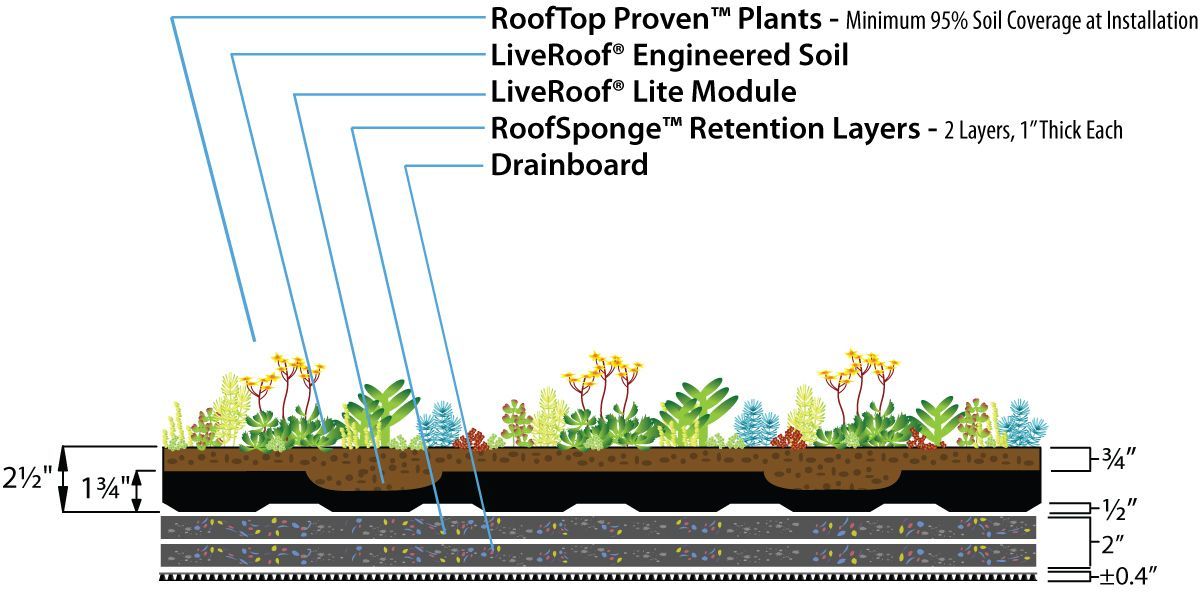

LifeRoof® Lite Module+ 2 RoofSponge™ (BrenV) Layers
- Soil: Appx. 2 1/2” deep
- Module Size: 1’ x 2’ x 1 3/4”
- Total System Saturated Weight: Appx. 21-23 lbs/sf saturated and vegetated, when filled with LiveRoof® Engineered Soil
- Total System Dry Weight: Appx. 12 lbs/sf
- Merits: Ideal for retrofit projects where load limitations exist
- Plants: Succulent ground covers and water conserving accent plants
- Note: Not recommended for hot climates
If you have any questions or are interested in having your very own LiveRoof®, please
contact us.
